Omnimax 64
The Omnimax is a bail arm tote with omni channel distribution in mind with a max volume design giving significant logistical gains.
Height (mm) | 300 | 320 | 370 | 400 |
---|---|---|---|---|
Temperature resistance | -20ºc to +40°c | -20ºc to +40°c | -20ºc to +40°c | -20ºc to +40°c |
External top (mm) l x w | 600 x 400 | 600 x 400 | 600 x 400 | 600 x 400 |
External base (mm) l x w | 536 x 340 | 536 x 340 | 536 x 340 | 536 x 340 |
Internal top (mm) l x w | 564 x 368 | 564 x 368 | 564 x 368 | 564 x 368 |
Internal base (mm) l x w | 531 x 335 | 531 x 335 | 531 x 335 | 531 x 335 |
Nesting pitch (mm) | 80 | 80 | 80 | 80 |
Nesting ratio (%) | 73 | 75 | 78 | 80 |
Internal useable height (mm) | 287 | 307 | 357 | 387 |
Stacking pitch (mm) | 297 | 317 | 367 | 397 |
Capacity (Litres) | 58 | 61 | 70 | 78 |
Weight (base + arms) (kg) | 2.2 | 2.3 | 2.5 | 2.7 |
Payload (kg) | 25 | 25 | 25 | 25 |
Stacking load (kg) | 250 | 250 | 250 | 250 |
Pallet type | UK | UK | UK | UK |
Quantity on pallet | 120 | 120 | 115 | 115 |
Pallet height (m) | 2.3 | 2.3 | 2.3 | 2.3 |
Quantity on truck | 3120 | 3120 | 2990 | 2990 |
Height (Inches) | 11.8 | 12.6 | 14.6 | 15.7 |
---|---|---|---|---|
Temp resistance | -4ºF to +104°F | -4ºF to +104°F | -4ºF to +104°F | -4ºF to +104°F |
External top (Inches) l x w | 23.6 x 15.7 | 23.6 x 15.7 | 23.6 x 15.7 | 23.6 x 15.7 |
External base (Inches) l x w | 21.1 x 13.4 | 21.1 x 13.4 | 21.1 x 13.4 | 21.1 x 13.4 |
Internal top (Inches) l x w | 22.2 x 14.5 | 22.2 x 14.5 | 22.2 x 14.5 | 22.2 x 14.5 |
Internal base (Inches) l x w | 20.9 x 13.2 | 20.9 x 13.2 | 20.9 x 13.2 | 20.9 x 13.2 |
Nesting pitch (Inches) | 3.1 | 3.1 | 3.1 | 3.1 |
Nesting ratio (%) | 73 | 75 | 78 | 80 |
Internal useable height (Inches) | 11.3 | 12.1 | 14.1 | 15.2 |
Stacking pitch (Inches) | 11.7 | 12.5 | 14.5 | 15.6 |
Capacity (US Liquid Gallon) | 15.3 | 16.1 | 18.4 | 20.6 |
Weight (base + arms) (Pounds) | 4.9 | 5.1 | 5.5 | 6 |
Payload (Pounds) | 55.1 | 55.1 | 55.1 | 55.1 |
Stacking load (Pounds) | 551.2 | 551.2 | 551.2 | 551.2 |
Pallet type | UK | UK | UK | UK |
Quantity on pallet | 120 | 120 | 115 | 115 |
Pallet height (feet) | 7.5 | 7.5 | 7.5 | 7.5 |
Quantity on truck | 3120 | 3120 | 2990 | 2990 |
Automation Optimised Bail Arms
Innovative arm design allows simple closing operation whilst being conveyed, reducing installation costs by mitigating the need for complex robotics.
Max Volume Design
Designed with space optimisation in mind to give maximum usable volume. +7% average volume increase vs. direct competing containers.
Huge Return Efficiencies
With an 80mm nesting pitch, the Omnimax boasts maximum return efficiencies in comparison to other nesting totes.
Base for Automation
Smooth running textured base to improve grip & speed, with no ribbing to reduce noise & a chamfered edge means to provide smooth transition between directional changes.
Offset Drainage Holes
Product designed in accordance to FM Global datasheet 8-34.
Pally and Lid compatible
All of our containers work in conjunction with the Loadhog Pally & Lid system to provide an end to end RTP system that completely eliminates double handling.
Vented Sides
Optional vented sides are available for fresh goods transit.

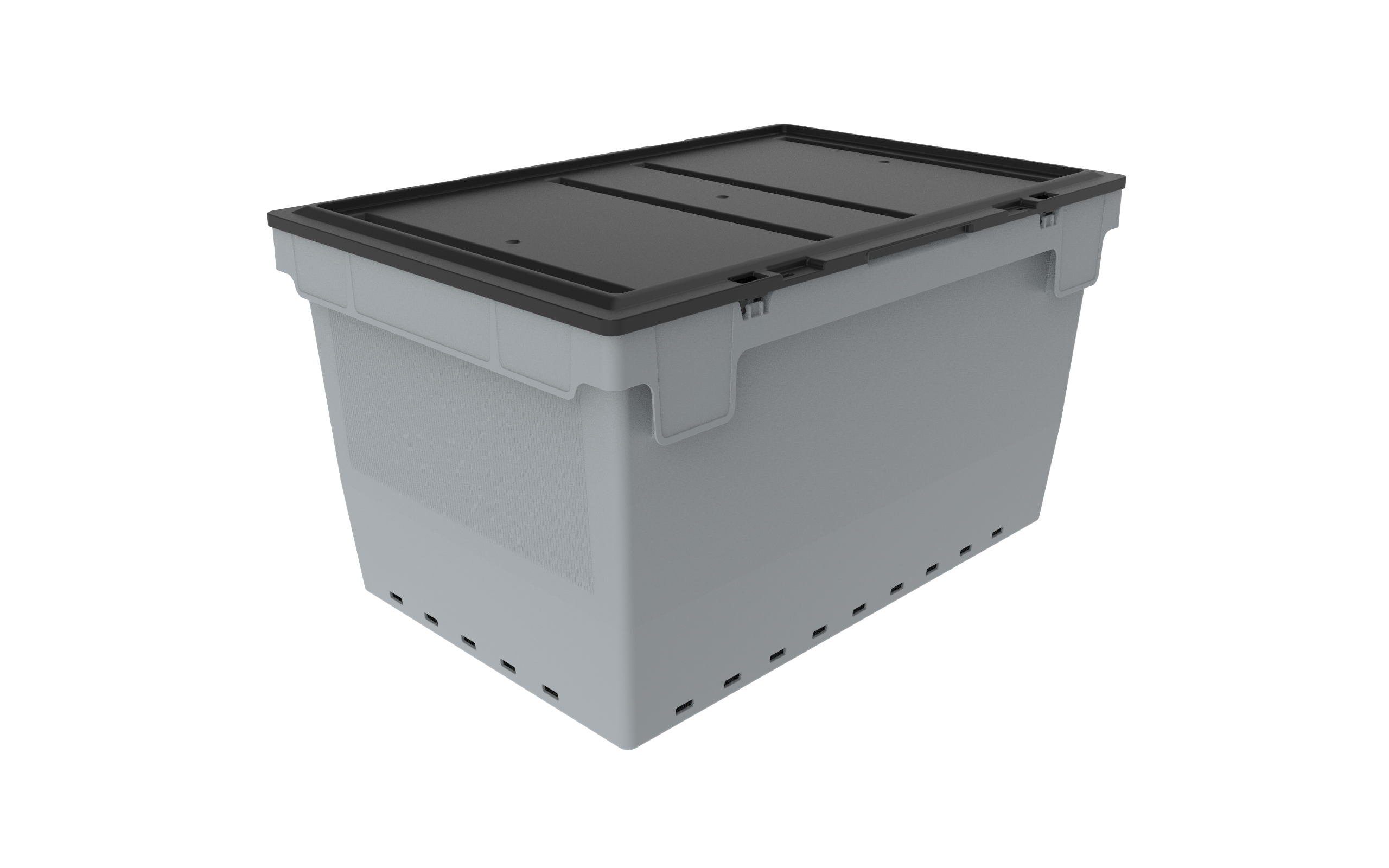

Easy Picking Lid
Increased ergonomics & easy picking with drop on lid that opens on an easy release hinge. Protects internal goods from dust.
Box loc security seals
Security seals available for various levels of security requirements.
Height (mm) | 300 | 320 | 370 | 400 |
---|---|---|---|---|
Temperature resistance | -20ºc to +40°c | -20ºc to +40°c | -20ºc to +40°c | -20ºc to +40°c |
External top (mm) l x w | 600 x 400 | 600 x 400 | 600 x 400 | 600 x 400 |
External base (mm) l x w | 536 x 340 | 536 x 340 | 536 x 340 | 536 x 340 |
Internal top (mm) l x w | 564 x 368 | 564 x 368 | 564 x 368 | 564 x 368 |
Internal base (mm) l x w | 531 x 335 | 531 x 335 | 531 x 335 | 531 x 335 |
Nesting pitch (mm) | 80 | 80 | 80 | 80 |
Nesting ratio (%) | 73 | 75 | 78 | 80 |
Internal useable height (mm) | 287 | 307 | 357 | 387 |
Stacking pitch (mm) | 297 | 317 | 367 | 397 |
Capacity (Litres) | 58 | 61 | 70 | 78 |
Weight (base + arms) (kg) | 2.2 | 2.3 | 2.5 | 2.7 |
Payload (kg) | 25 | 25 | 25 | 25 |
Stacking load (kg) | 250 | 250 | 250 | 250 |
Pallet type | UK | UK | UK | UK |
Quantity on pallet | 120 | 120 | 115 | 115 |
Pallet height (m) | 2.3 | 2.3 | 2.3 | 2.3 |
Quantity on truck | 3120 | 3120 | 2990 | 2990 |
Height (Inches) | 11.8 | 12.6 | 14.6 | 15.7 |
---|---|---|---|---|
Temp resistance | -4ºF to +104°F | -4ºF to +104°F | -4ºF to +104°F | -4ºF to +104°F |
External top (Inches) l x w | 23.6 x 15.7 | 23.6 x 15.7 | 23.6 x 15.7 | 23.6 x 15.7 |
External base (Inches) l x w | 21.1 x 13.4 | 21.1 x 13.4 | 21.1 x 13.4 | 21.1 x 13.4 |
Internal top (Inches) l x w | 22.2 x 14.5 | 22.2 x 14.5 | 22.2 x 14.5 | 22.2 x 14.5 |
Internal base (Inches) l x w | 20.9 x 13.2 | 20.9 x 13.2 | 20.9 x 13.2 | 20.9 x 13.2 |
Nesting pitch (Inches) | 3.1 | 3.1 | 3.1 | 3.1 |
Nesting ratio (%) | 73 | 75 | 78 | 80 |
Internal useable height (Inches) | 11.3 | 12.1 | 14.1 | 15.2 |
Stacking pitch (Inches) | 11.7 | 12.5 | 14.5 | 15.6 |
Capacity (US Liquid Gallon) | 15.3 | 16.1 | 18.4 | 20.6 |
Weight (base + arms) (Pounds) | 4.9 | 5.1 | 5.5 | 6 |
Payload (Pounds) | 55.1 | 55.1 | 55.1 | 55.1 |
Stacking load (Pounds) | 551.2 | 551.2 | 551.2 | 551.2 |
Pallet type | UK | UK | UK | UK |
Quantity on pallet | 120 | 120 | 115 | 115 |
Pallet height (feet) | 7.5 | 7.5 | 7.5 | 7.5 |
Quantity on truck | 3120 | 3120 | 2990 | 2990 |
